Product Description

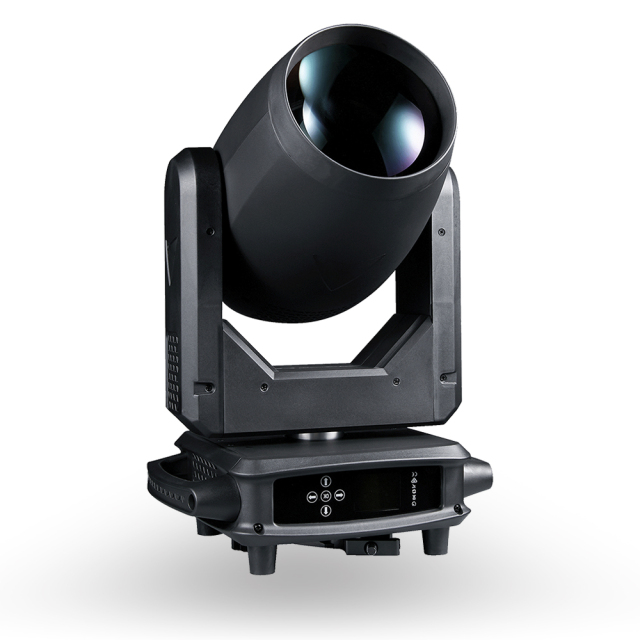

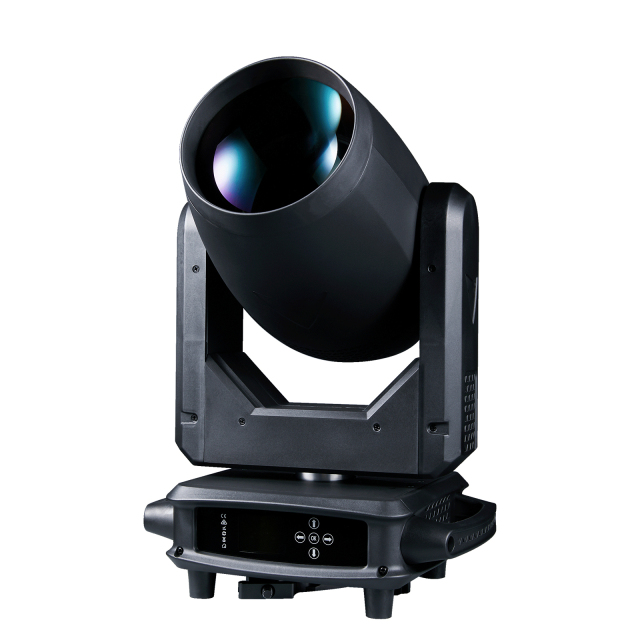

BO-B300LED - 300w LED Beam moving head light boasts a high brightness LED, 1.8° beam angle, perfect for precise and intense illumination.
It offers control options like DMX512, auto, master/slave, and RDM modes, along with a 16-bit smooth dimming function and multiple special effects
such as color wheel, static gobos, and prism rotation.

【Ultra-High Output】

Powered by a next-gen 300 W LED (9 500 K, 70 CRI) and a colossal φ160 mm crystal-grade lens, this fixture fires an ultra-narrow 1.8° beam that stays razor-sharp across the longest throws. 20 000+ hour LED life and real-world 300 W draw give stadium-class punch without lamp swaps or heavy power bills.

【Rich Color & Effect System】

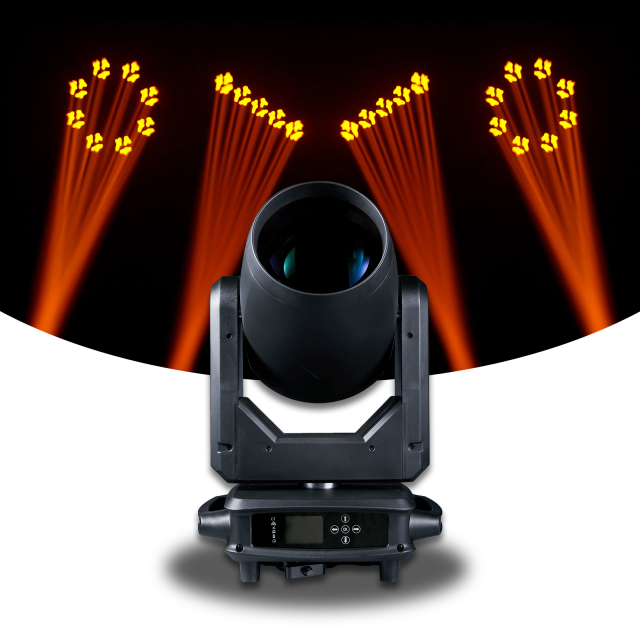

Twin color wheels give you ultimate flexibility: Color wheel 1 carries 14 dichroic colors + open with bidirectional rainbow scroll; Color wheel 2 adds a 7-segment multicolor “effect + fog” wheel for smooth pastels or saturated bursts. Sixteen static metal gobos + open supply detailed breakup patterns, while 8-facet circular and 8+16+24-facet honeycomb prisms can be used independently or stacked, rotating in both directions at variable speed for infinite aerial looks. Electric focus keeps every gobo crisp at any throw distance.

【Professional Control & Movement】

18-channel DMX512, RDM, built-in programs, master/slave and sound-active modes satisfy every rig. 540° pan (16-bit) and 270° tilt (16-bit) are driven by SY three-phase motors with magnetic encoders—fast, quiet and repeatable to 0.1°. 0-100 % smooth linear dimming plus variable-speed shutter provide precise intensity and strobe effects. An LCD touch screen on the head allows quick offline setup, while onboard thermal management auto-dims the lamp to extend life.

【Tour-Grade Construction】

The flame-retardant PA6 nylon housing withstands 200 °C and resists the knocks of daily touring. Locking PowerCON in/out and 3-pin XLR (5-pin optional) connectors keep cabling clean. Dual fast-lock clamps (folding omega clamps optional) make one-person rigging effortless. Set it on the deck for festivals, TV studios, EDM clubs, churches or any event that demands uncompromising beam performance and reliability.

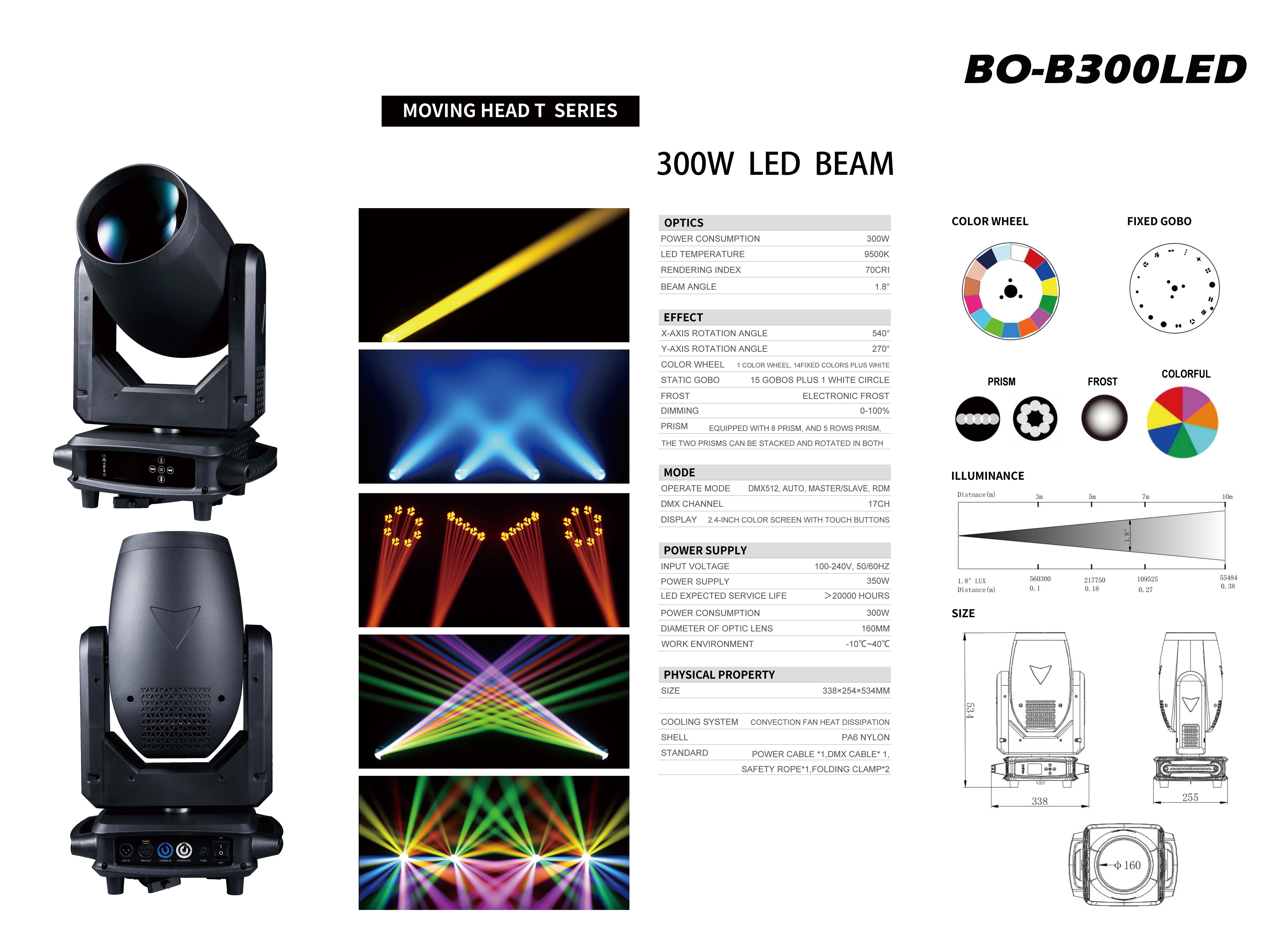

OPTICS

Light Source: 300W LED
Beam Angle: 1.8°
Diameter of Optic Lens: 160mm
LED Temperature: 9500K
Standard: 70CRI
LED Expected Service Life: >20000 hours

CONTROL

DMX Channel: 17CH
Operate Mode: DMX512, Auto, Master/Slave, RDM
Control Panel: LCD Touch screen
Overheating Self-Energy Protection: Extends LED life
Electric Focusing System
Four Dimming Curves: Linear, Square law, Inverse squared law, S curve
0-100% 16bit Linear Smooth Dimming

DYNAMIC EFFECT

Color Wheel: 1 color wheel with 14 fixed colors plus white
Static Gobo: 15 gobos plus 1 white circle
Prism: Equipped with 8 prism, and 5 rows prism, the two prisms can be stacked and rotated in both directions
High Brightness Frost Sheet: Provides smooth wash effect
Multiple Speed Strobe Effects

POWER CONSUMPTION

Input Voltage: 100-240V, 50/60Hz
Output Voltage: V1: 36V (LED driver) + V2: 12V (cooling fan + Display)
Power Consumption: 300W
Power Supply: 350w

PHYSICAL

X-axis Rotation Angle: 540°
Y-axis Rotation Angle: 270°
Three Phase Motor with SY Brand
XY Axis Magnetic Coding Positioning: More accurate
Fixture Size: 338*254*534mm

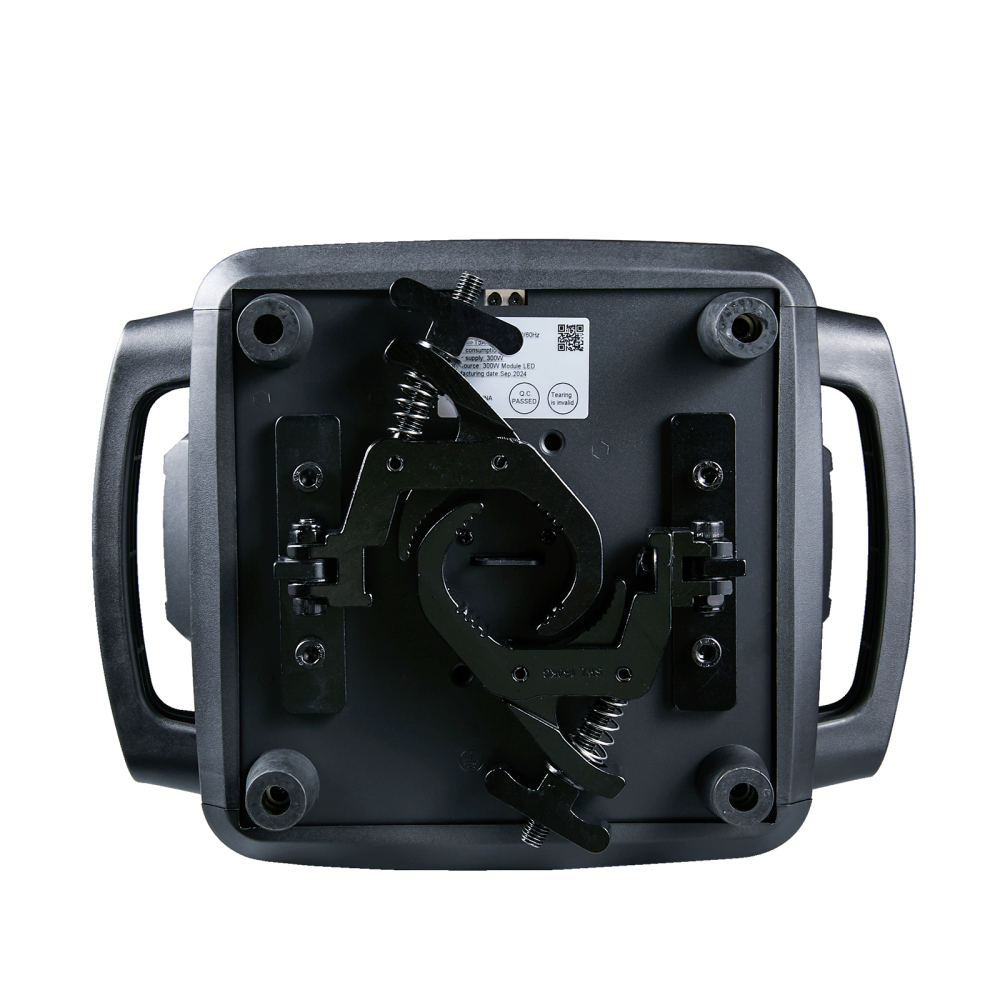

Installation: Folding clamp

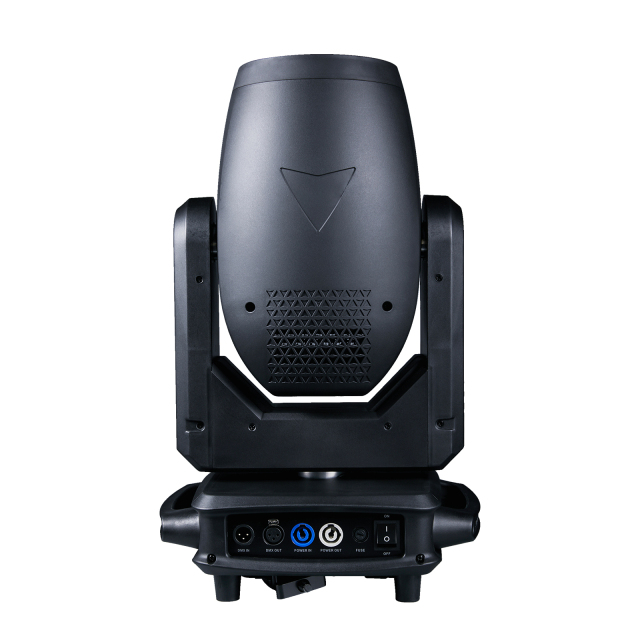

Power Outlet: Power Connector Input/Output
Signal Line: 3-pin or 5-pin signal line
