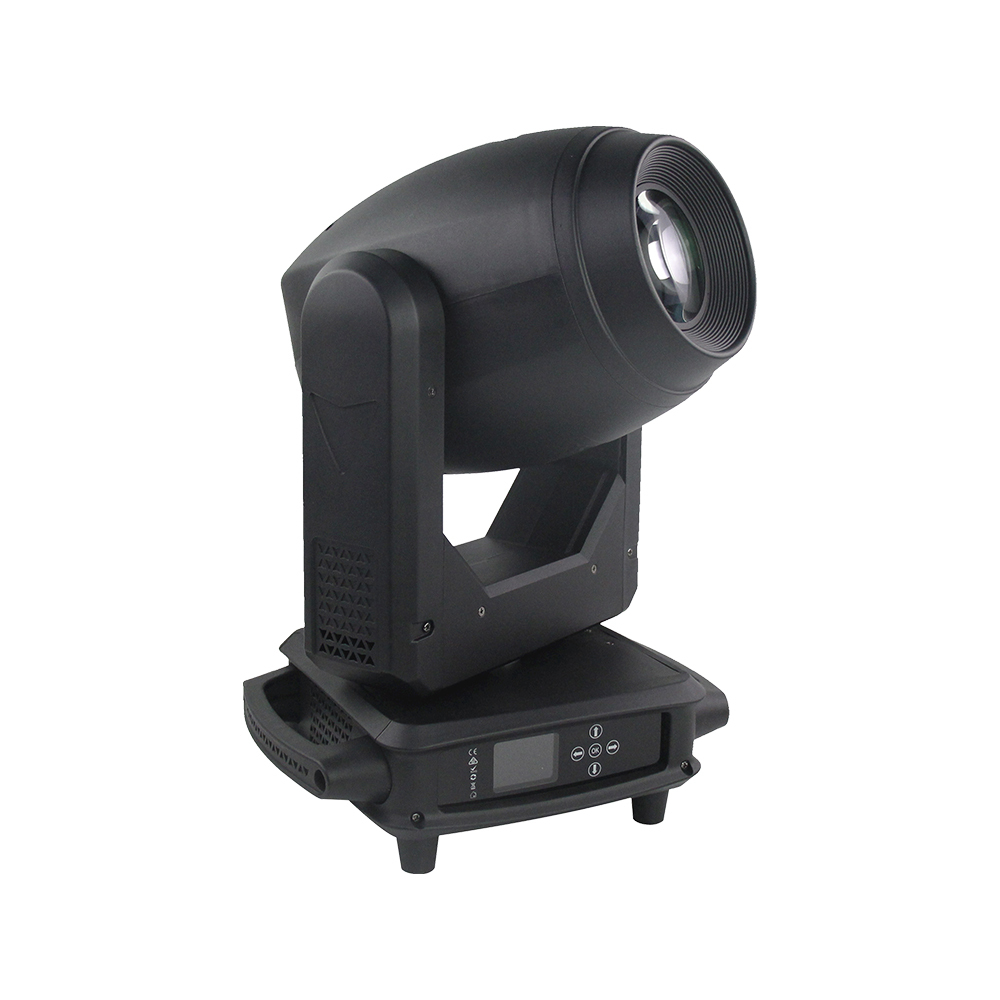

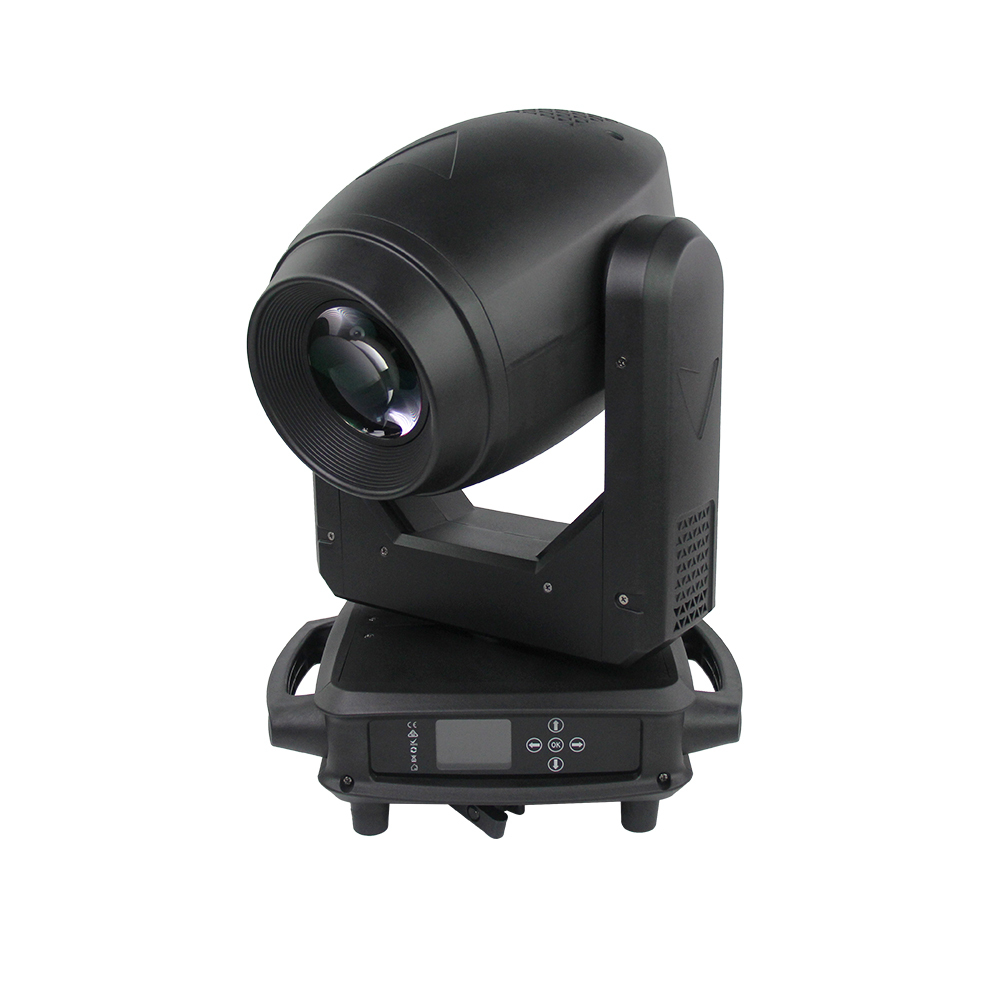

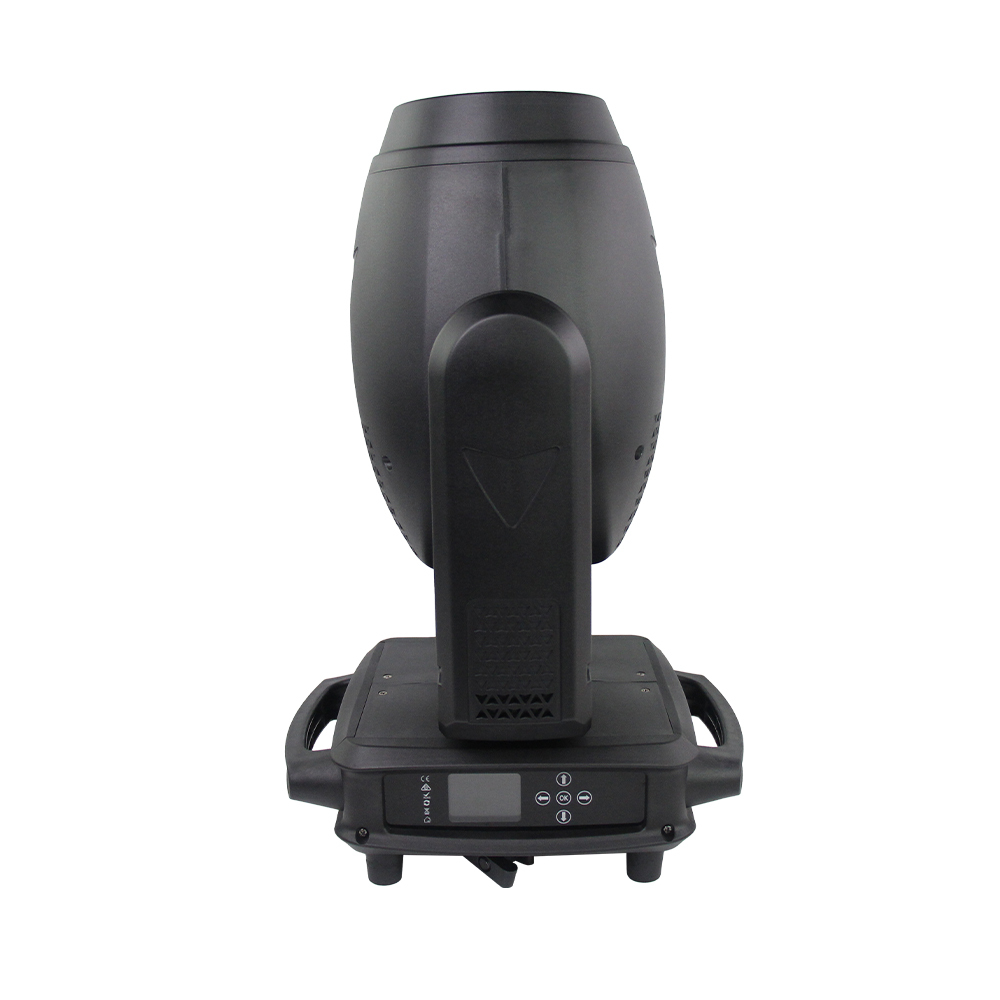

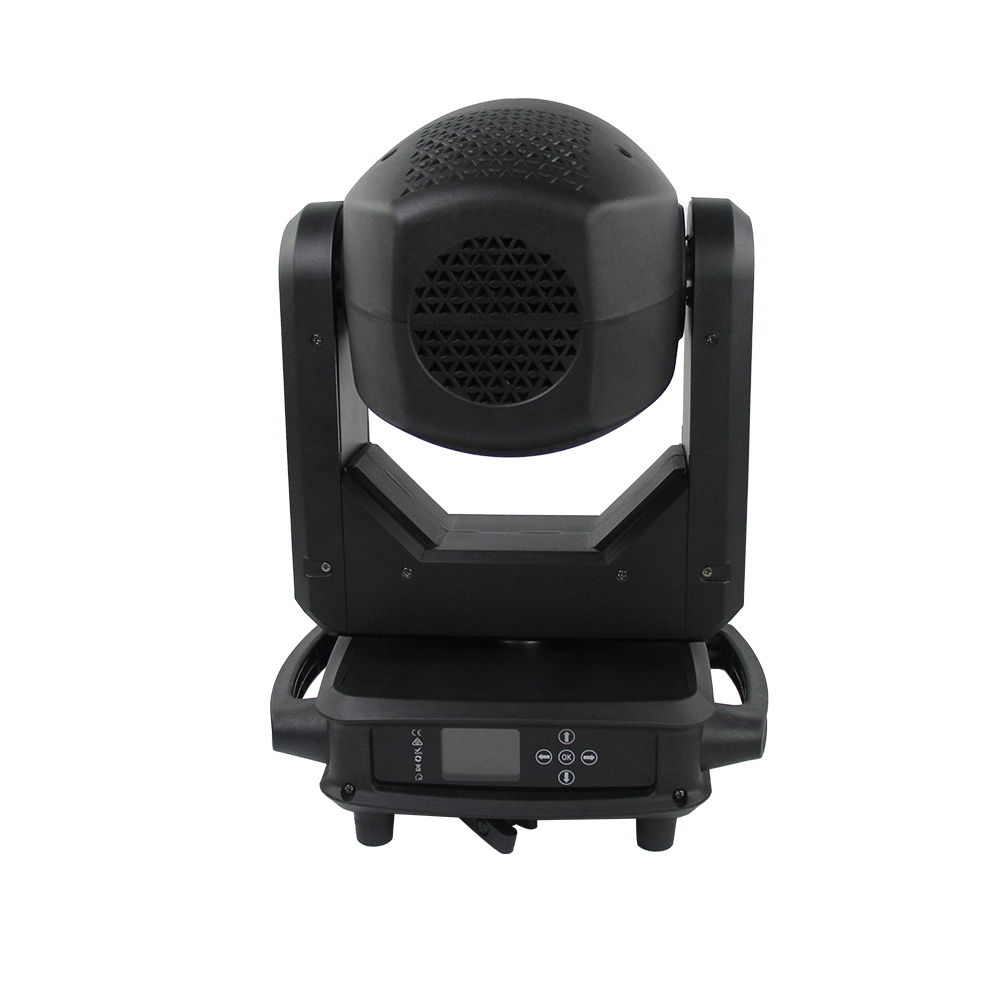

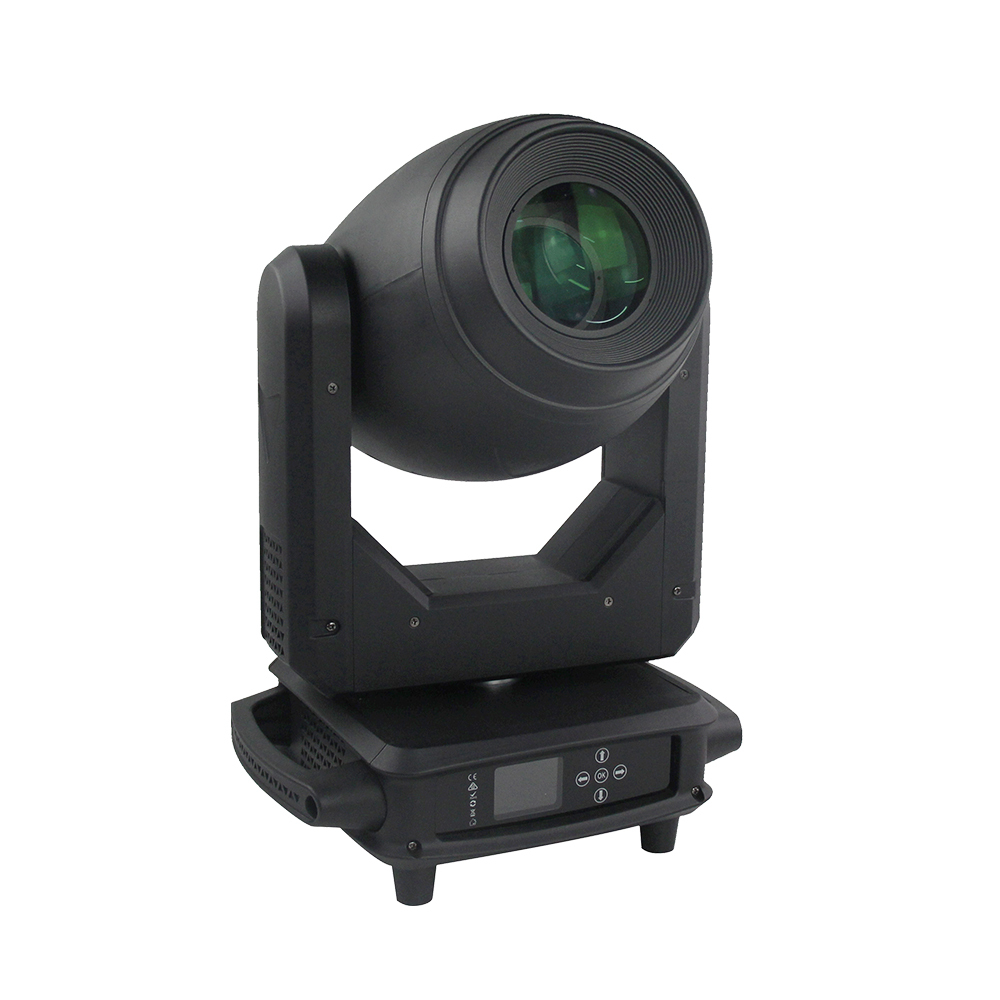

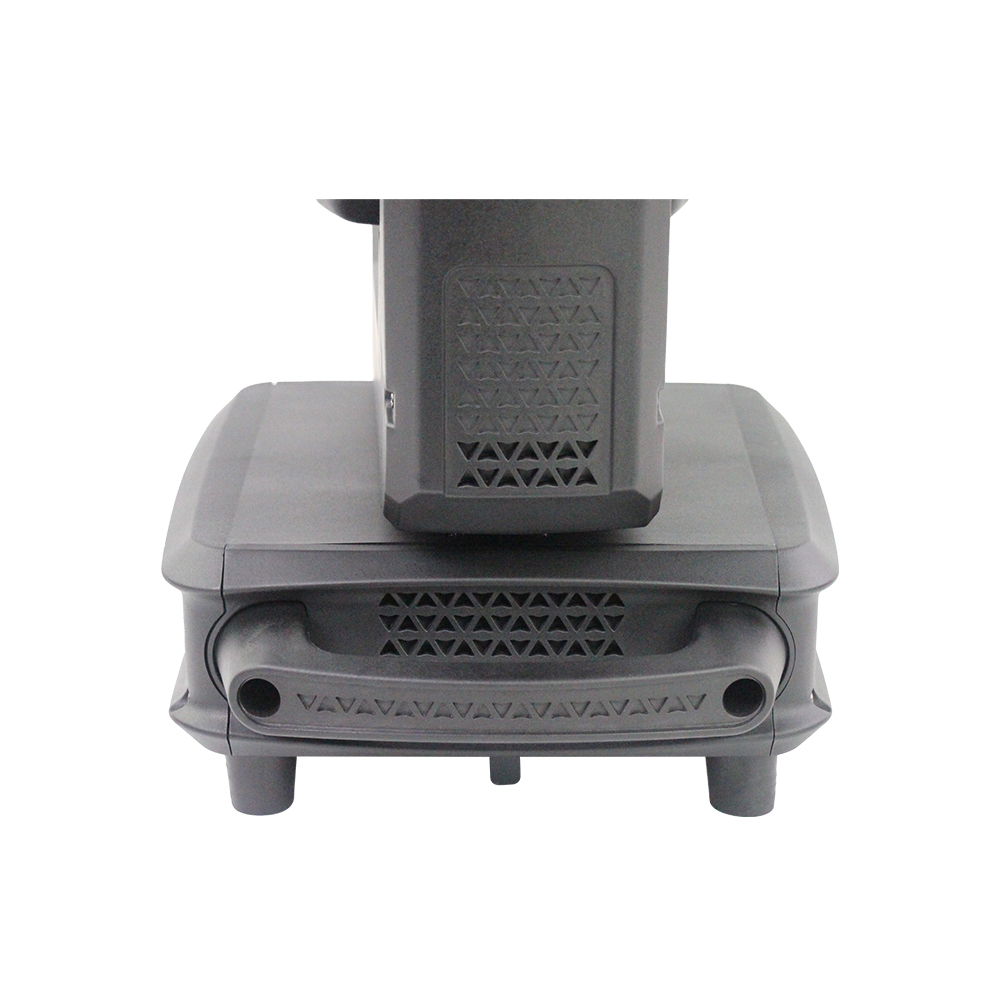

300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights

No.BO-BSW300
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
  • 300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights
Description







BO-BSW300
300W LED Hybrid Beam Spot Wash 3-in-1 moving head lights


Specifications:
Input Voltage: 100-240V, 50/60Hz
Output Voltage: V1:36V(Master board+LED driver),
V2:12V(cooling fan+Display)
Power consumption: 320W
Power supply: 400W
Light source: 300W Osram Luxury LED chip(21-24V,8A)
Color temperature: 8000K
Diamter of optic lens: 97mm
Zoom angle: 6-35°
Color wheel: 7 colors plus white
Static gobo: 8 gobos plus 1 white circle
Rotation Gobo: 7 Gobo plus 1 white circle
Prism: 3 prisms,can be rotated in both directions
Frost filter: with smooth wash effect
Focus: Electric focusing system
DMX Channel: 20CH
Operate mode: DMX512, self-propelled, master/slave, RDM

Features:
1.0-100% 16Bit smooth dimming, Four dimming curves
2. Overheating self-energy protection can extend lamp life
3. Three phase Motor with SY Brand ( XY axis magnetic coding positioning is more accurate)
4.  two angle lenses 6° and 35° can change the gobo size

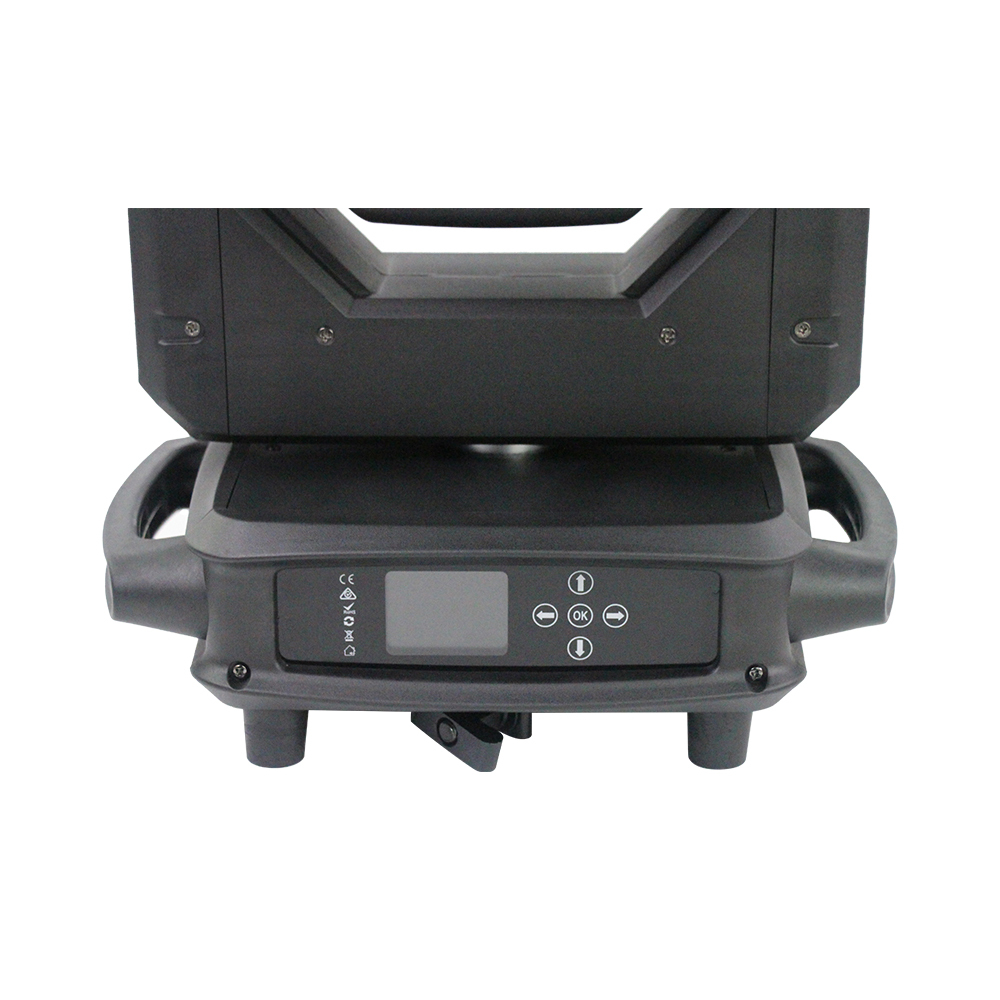

5. High-quality LCD touch screen

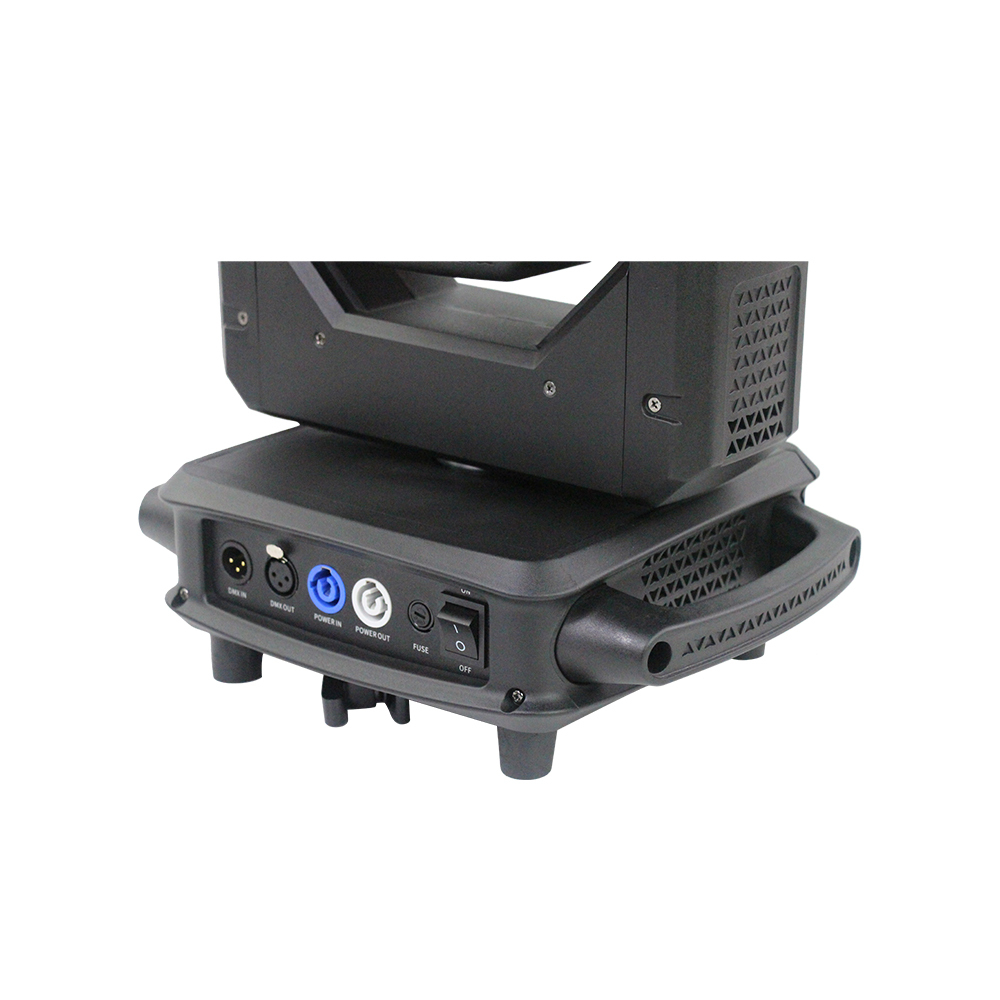

6. Power in & Out connector,3 or 5pin XLR input & output can optional

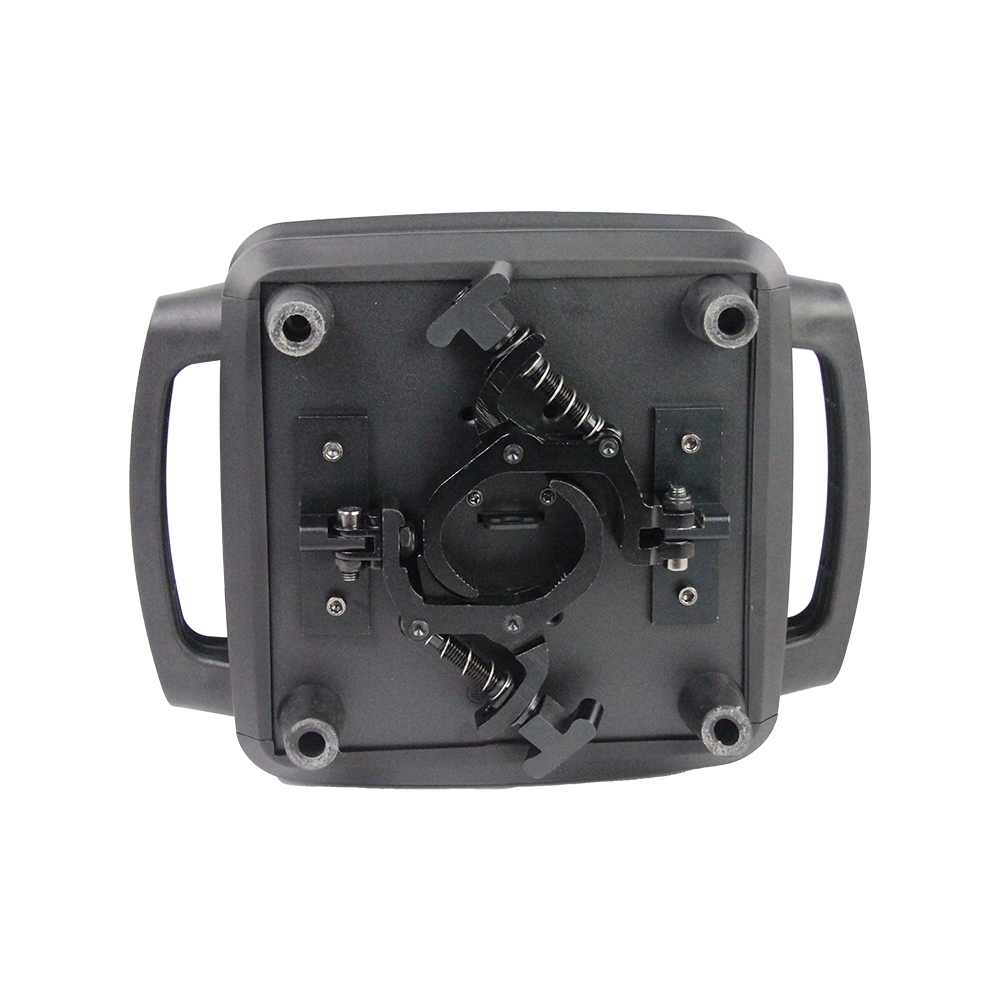

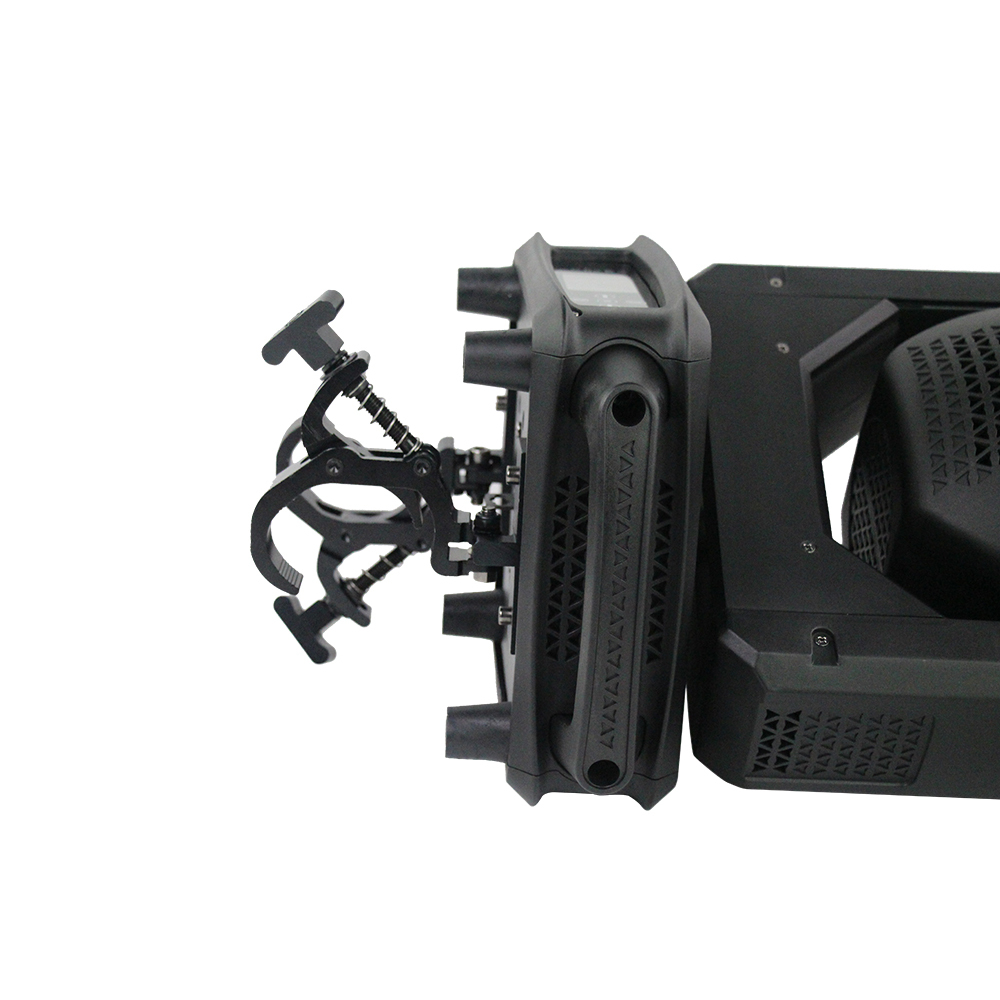

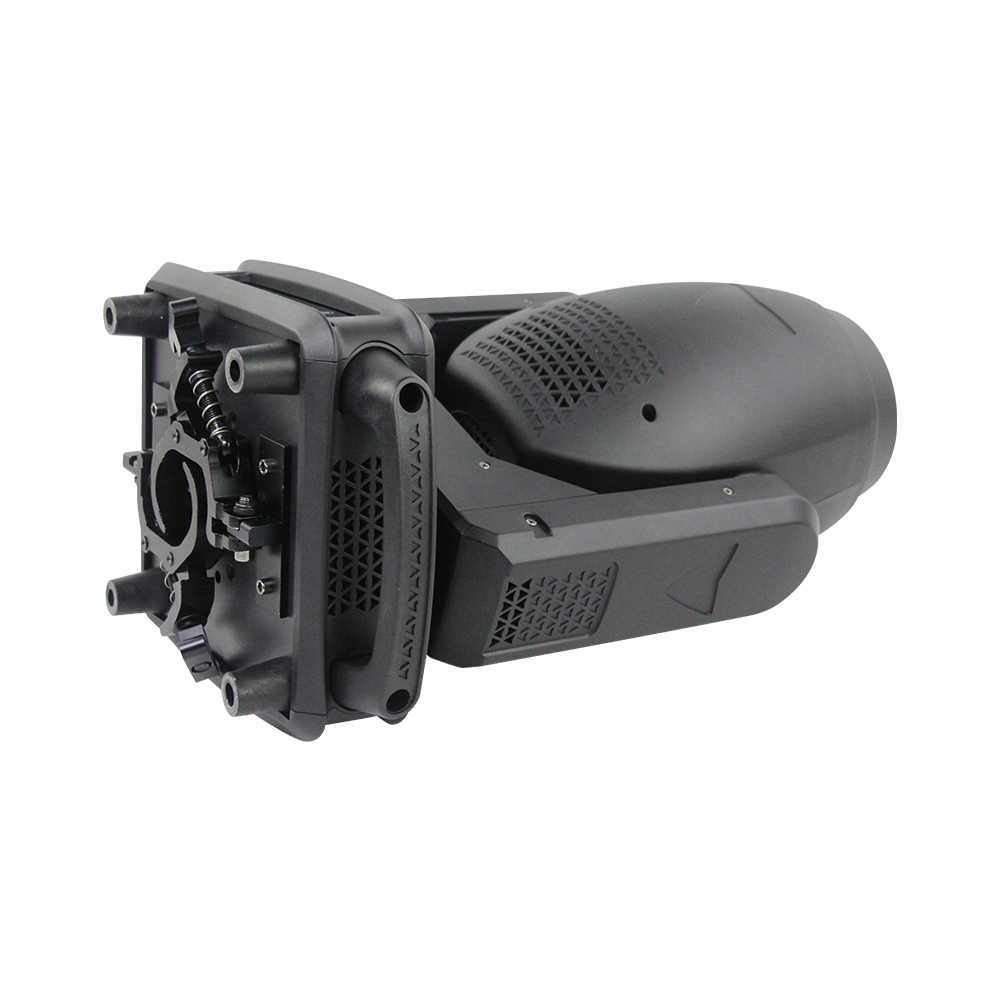

7. Folding clamp can optional
8. Housing material: PA6 Nylon( Solid,high temperature resistance up to 200°flame retardance)
