Product Description

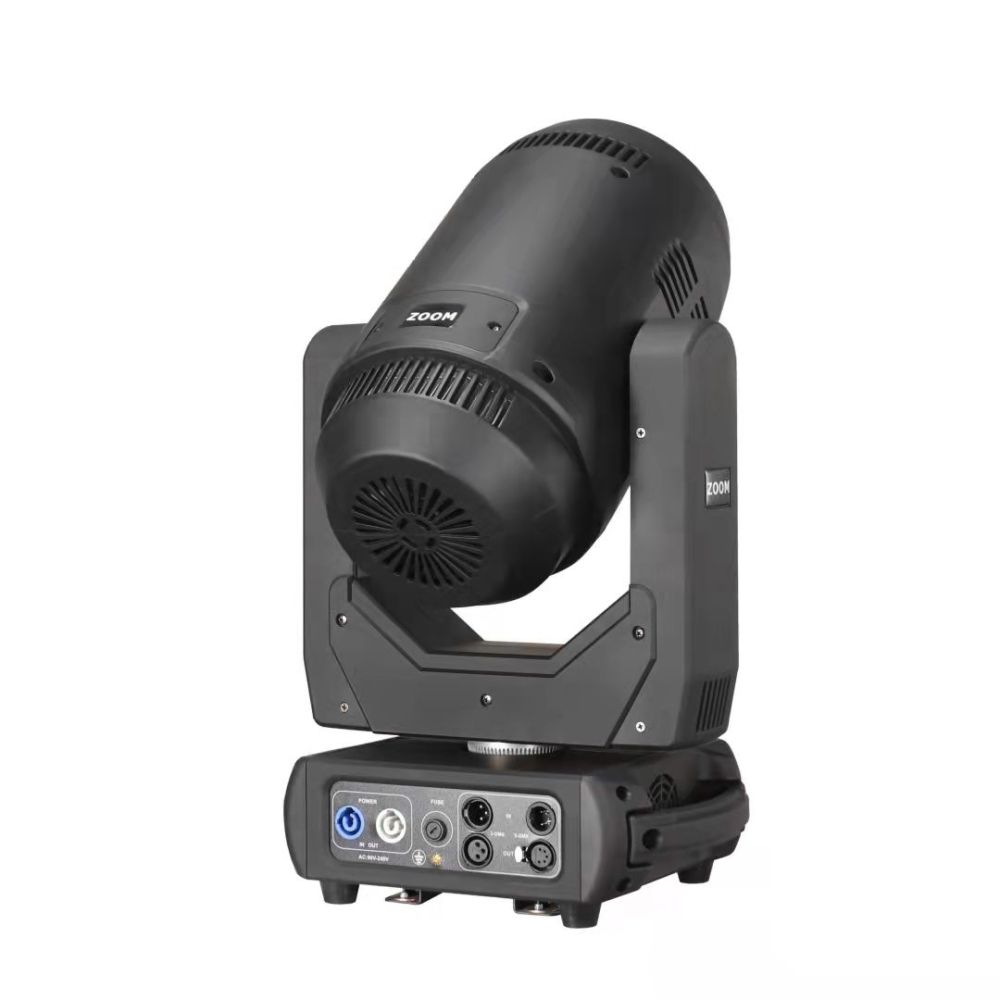

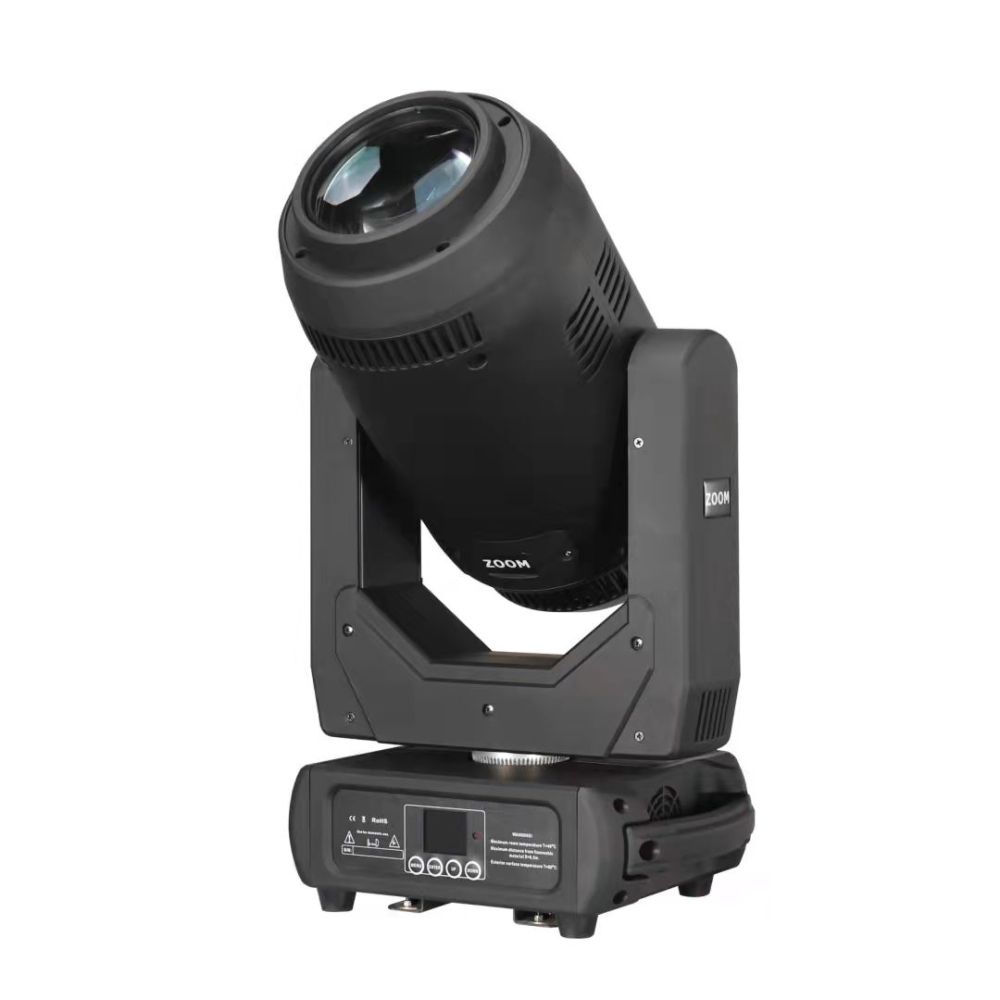

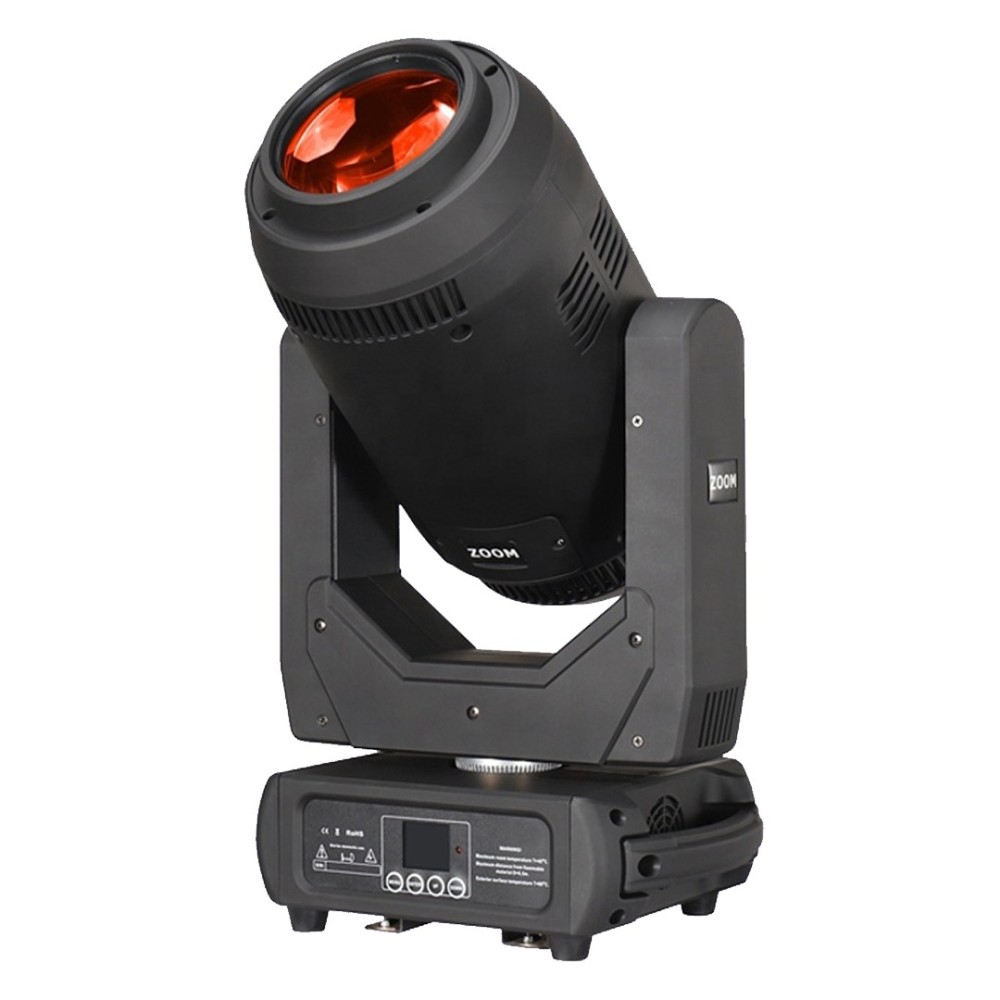

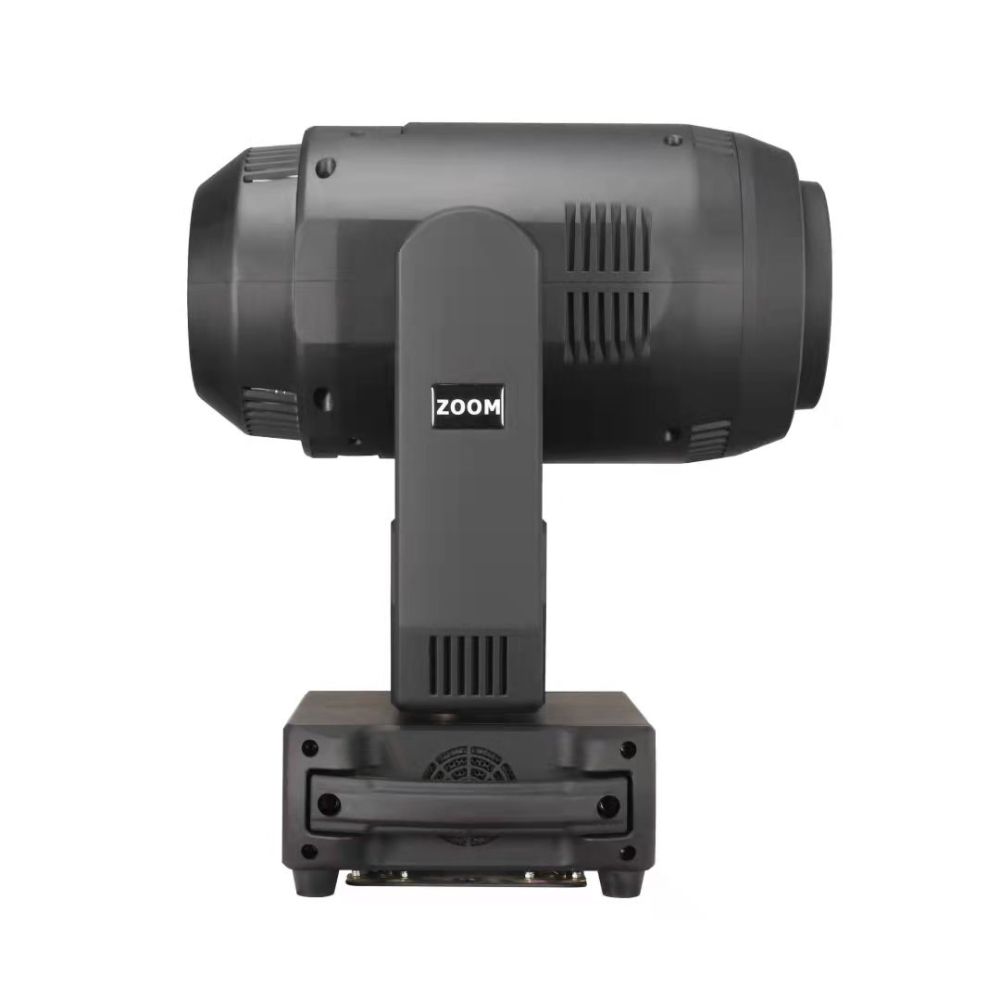

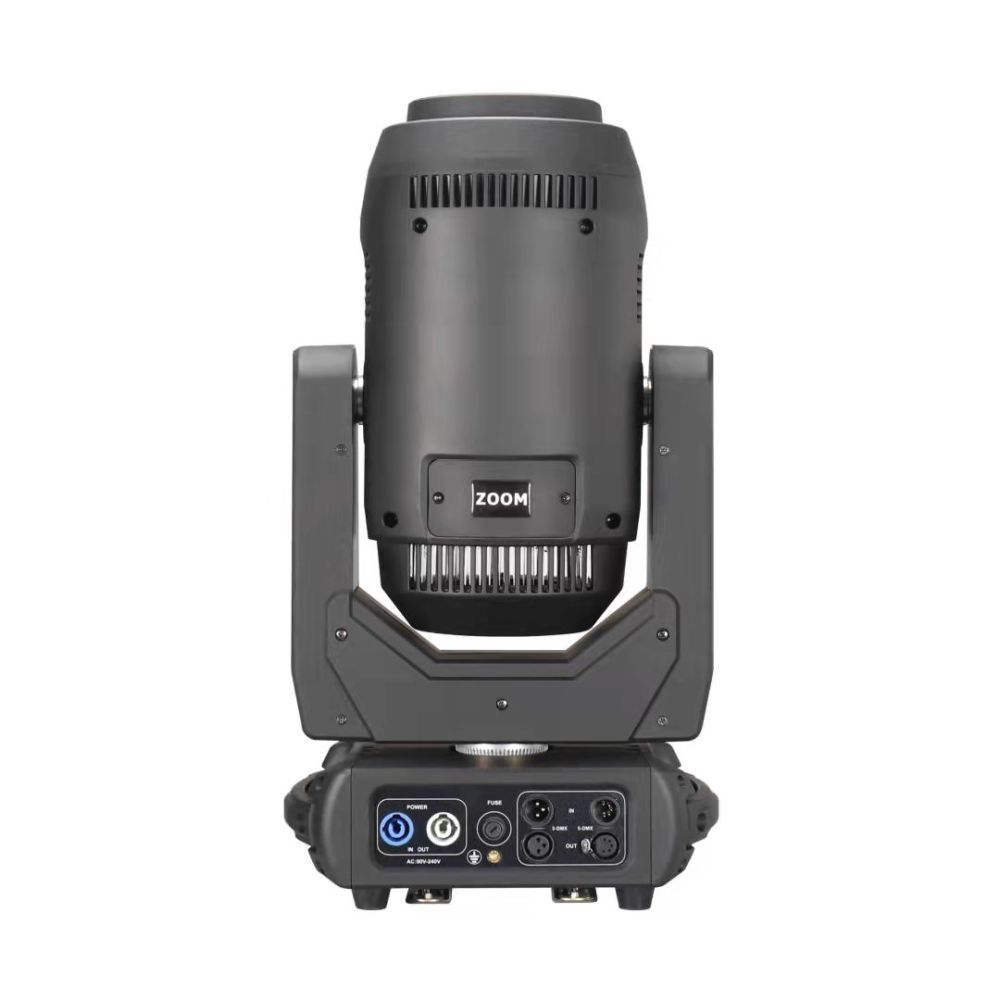

The 350W LED Moving Head Light BEAM SPOT WASH 3IN1 unites three core stage effects—piercing beam, crisp spot, and silky wash—inside one compact, high-output fixture. Driven by a 350W high-intensity LED engine, it projects ultra-bright, far-reaching light that cuts through haze and darkness, making it the perfect workhorse for concerts, festivals, clubs, houses of worship, and any production that needs maximum impact from a single lantern.
Motorized zoom adjusts seamlessly from a razor-sharp 2° beam to a wide 38° wash, while dual gobo wheels (rotating & static), dual prisms (6-facet linear + 16-facet circular), and a frost filter deliver endless aerials, breakup textures, and smooth color blends. 14 colors + white, split-color ability, 0–100% linear dimming, and variable strobe (0–14 Hz) are all accessed via 16/24-channel DMX512, RDM, master/slave, or sound-activated mode, with 540° pan / 270° tilt on fast, quiet 3-phase motors for precise positioning.
Weighing under 20kg and drawing only 500W, the fixture ships with PowerCON TRUE1 in/out, 3- & 5-pin DMX, and an LCD touchscreen that flips 180° for easy rig-side setup. Efficient heat pipes and temperature-controlled fans keep the 50,000h LED running safely in IP20 housings, ensuring rock-solid performance on tour, in rental fleets, or for one-off events where reliability, low power draw, and multi-role flexibility are critical.
OPTICS
- Light Source: 350W High Output White LED
- Zoom angle 8°~35°, focus function
- High light output,25000LUX@5M at White light zoom in,
- 1500LUX@5M at White light zoom out
CONTROL
- Control Signal: DMX 512, master-slave and sound activated or auto operation
- Control Channel: 16/18 DMX Channels USITT DMX-512
POWER CONSUMPTION
- Input Voltage: AC90-260V 50/60Hz
- Power Consumption: 450W
DYNAMIC EFFECT
- Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and speed,with
- rainbow effect.
- 1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake,The gobo plate is Removable, it
- is more convenient to change the gobo
- 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
- Prism: 8-facet Prism, bi-directional rotatable at variable speeds
- Frost effect
- High speed strobe effect with 0.3-25 flashers per second
- Internal program available
PHYSICAL
- IP 20 protection rating
- Dimensions: 312(L)*222(W)*590(H)mm
- Packing size: 390(L)*310(W)*710(H)mm
- Net Weight: 16kg,Gross Weight: 19kg
