864RGB&White LED Strobe

SKU:SL002

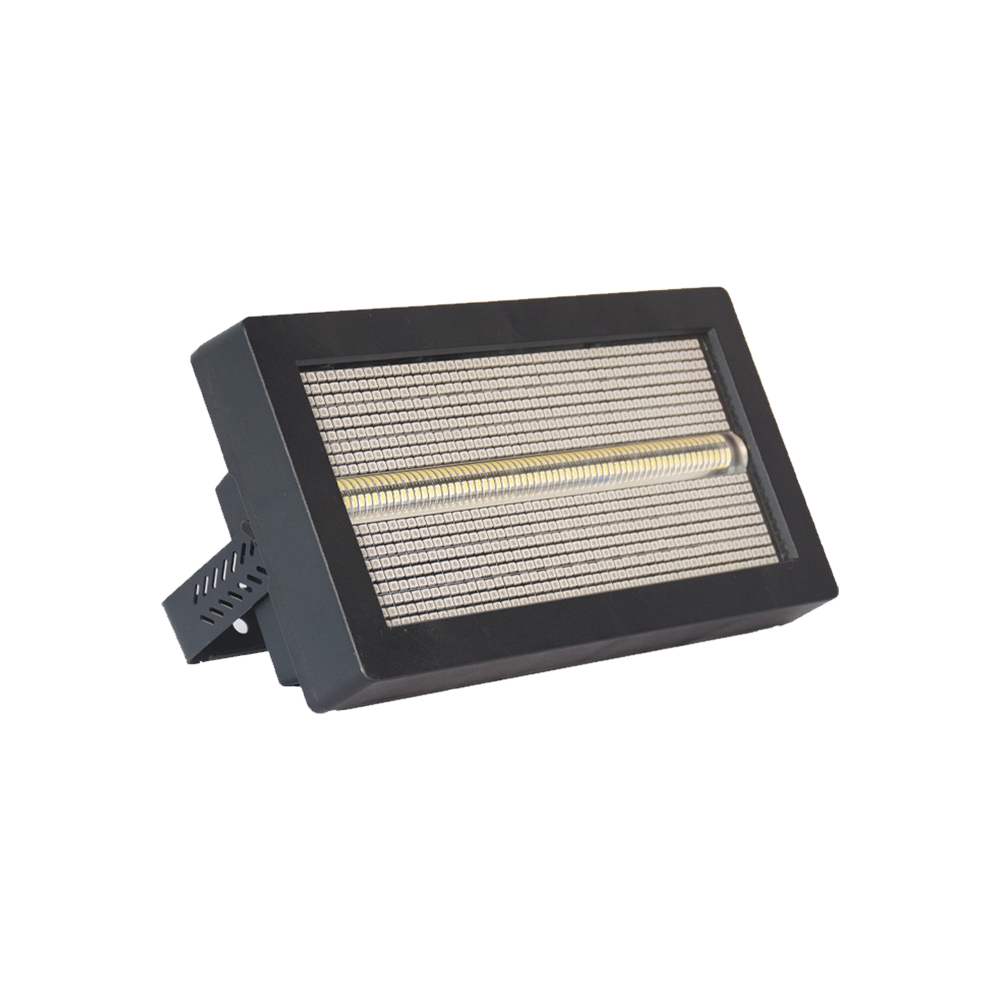

350W RGB&CW LED DMX Blinder Wash Panel Strobe Stage Light
Main features:
  • LED: 256pcs 3030 white light 1 watt, 864pcs 5050 RGB 0.2 watt
  • Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
  • Channel: CH04, CH17, CH145
  • Features: 96 segments RGB + 32 segments W + dyeing + flash + horse racing effect
  • 864RGB&White LED Strobe
  • 864RGB&White LED Strobe
  • 864RGB&White LED Strobe
  • 864RGB&White LED Strobe
Product Description
【High-Power Light Source 】
Combines 256pcs 3030 white light LEDs (1W each, divided into 32 segments) and 864pcs 5050 RGB LEDs (0.2W each, divided into 96 segments), delivering precise, layered lighting with separate 130W RGB and 220W white light power allocation. This configuration enables versatile effects including dyeing, flashing, and horse racing patterns.

【Control Modes】
Supports DMX512, self-propelled, master-slave, and voice control modes, plus RDM functionality for remote configuration. Offers 3 channel options (CH04, CH17, CH145) to adapt to simple operations or complex programming needs.

【Lighting Effects】
 Features 32-bit 0~100% linear dimming for ultra-smooth brightness transitions, paired with adjustable strobe frequency (1~30Hz) for rhythmic visual impact. The segmented design enhances control over intricate lighting sequences.
OPTICS
  • LED light source
  • 256 x 1W White LEDs (3030 type), arranged in 32 segments.
  • 864 x 0.2W RGB LEDs (5050 type), arranged in 96 segments.
  • Function: Dyeing (Colour Wash) + Flash + Horse Racing (chasing)
  • effect.
  • Strobe Frequency: Adjustable from 1 to 30 Hz.
  • Dimming: 32-bit high-resolution, 0~100% linear dimming.
CONTROL
  • Protocol: DMX512 (with RDM function for remote management).
  • Control Modes: DMX, Self-Running (Auto), Master-Slave, Voice Control.
  • Available Channels: CH04, CH17, CH145.
  • Intelligent Cooling: Fan automatically activates when temperature exceeds 40°C to extend LED lifespan.
POWER CONSUMPTION
  • Total Rated Power: 350W (Detailed: White Light 220W, RGB 130W).
  • Input Voltage: AC 100-240V, 50/60Hz (Universal Voltage).
PHYSICAL
  • Dimensions: 420 x 220 x 210 mm.
  • Weight: 3.9 kg.
  • IP Rating: IP20 (For indoor use only, provides basic protection against solid objects).
  • Operating Temperature: -20°C to +45°C.
