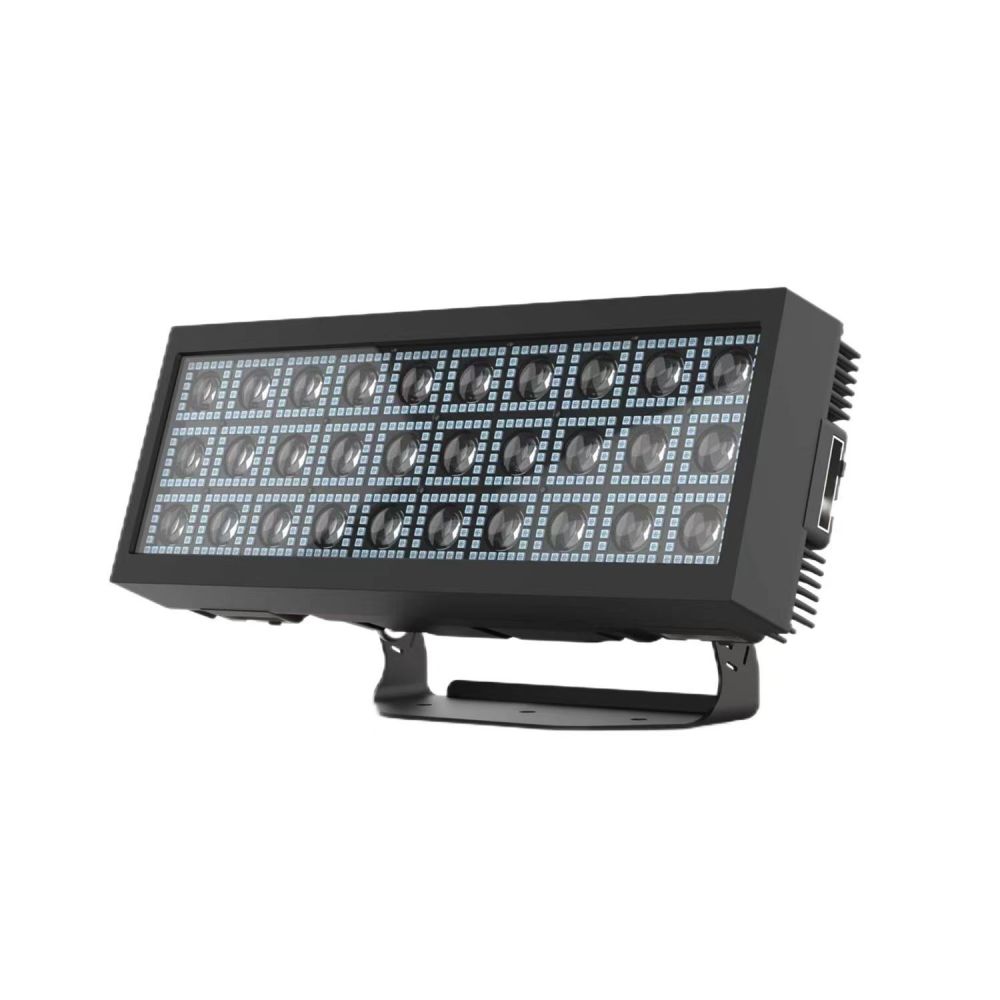

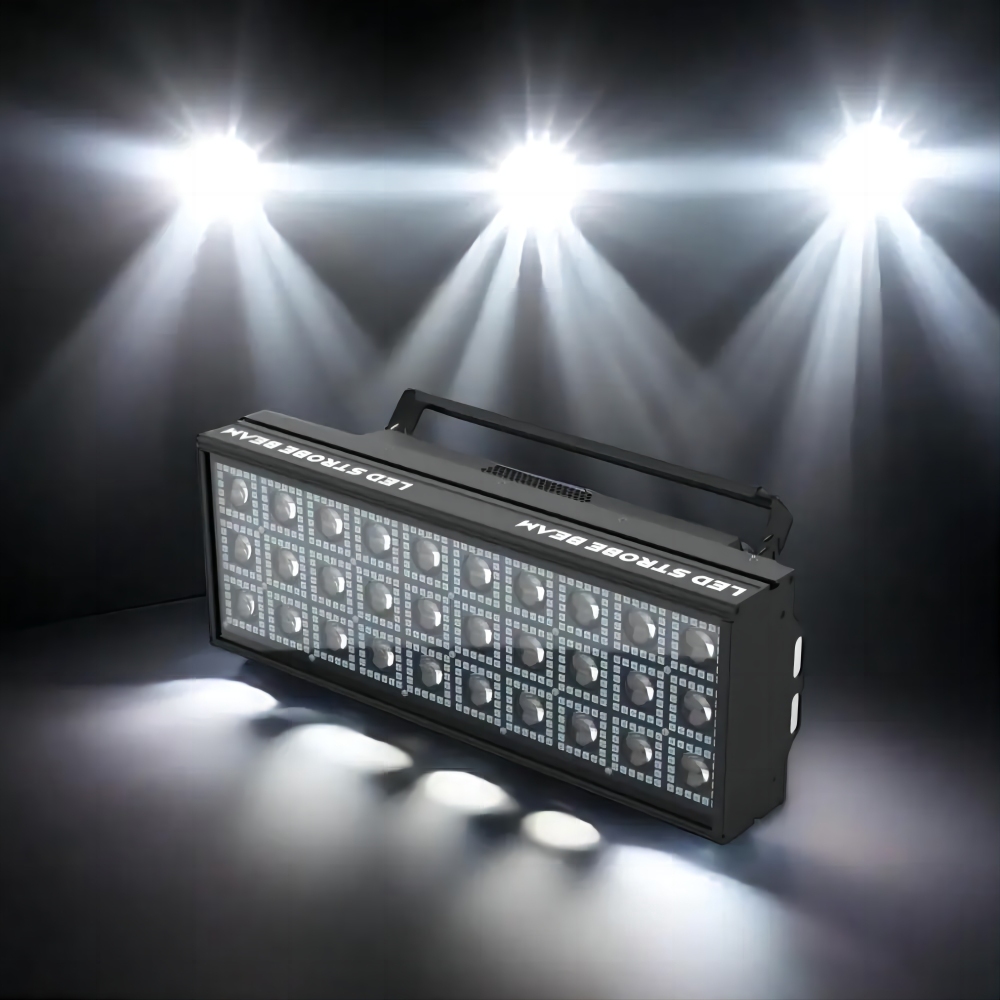

IP RGB&CW LED Strobe

Name: IP RGB&CW LED Strobe
Brand: Both Lighting
SKU: SKU:SL600
Availability: InStock
Rating: 5 (1 reviews)

SKU:SL600

IP65 Waterproof 400W RGB&CW LED DMX Blinder Wash Panel Strobe Stage Light

Get A Quote Add to Quote List

Main features:

LED: 30pcs 3535 cool white 10W, 600pcs 5050 RGB 0.3W LED
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channel: CH08, CH13, CH15, 22AC, CH24, CH18, 22BC, CH30, CH34, CH50, CH120, CH127
Features: dyeing + flashing + running point control
Splicing: two lamps can be spliced together up and down or left and right.
IP rating: IP65

Product Description

Videos

Features

Projects

Product Description

【High-Power Light Source 】
Combines 30pcs 3535 cool white 10W LEDs (for bright, crisp white light) and 600pcs 5050 RGB 0.3W LEDs (for vibrant full-color mixing), delivering layered lighting that supports dyeing, flashing, and running point control. Powered by a 400W system, it balances high brightness with energy efficiency for impactful visual performance.

【Control Modes】
Supports multiple control modes: DMX512 (for professional programming), self-propelled (standalone operation), master-slave (synchronized multi-unit control), and voice control (sound-triggered effects), plus RDM functionality for remote configuration. Offers extensive channel options (CH08, CH13, CH15, 22AC, CH24, CH18, 22BC, CH30, CH34, CH50, CH120, CH127) to adapt to simple or complex lighting designs.

【Lighting Effects】
Features 32-bit 0~100% linear dimming for ultra-smooth brightness transitions, avoiding flicker and ensuring natural light adjustments. Adjustable strobe frequency (1~30HZ) adds rhythmic visual impact, complementing the dyeing and running point control features for dynamic stage or event lighting.

【Flexible Splicing & Installation】
Supports splicing of two lamps up/down or left/right, enabling customized lighting arrays to fit different venue sizes and shapes—perfect for creating large-scale continuous light surfaces or creative configurations.

LED light source:

30 x 10W Cool White LEDs (3535 type)
600 x 0.3W RGB LEDs (5050 type)

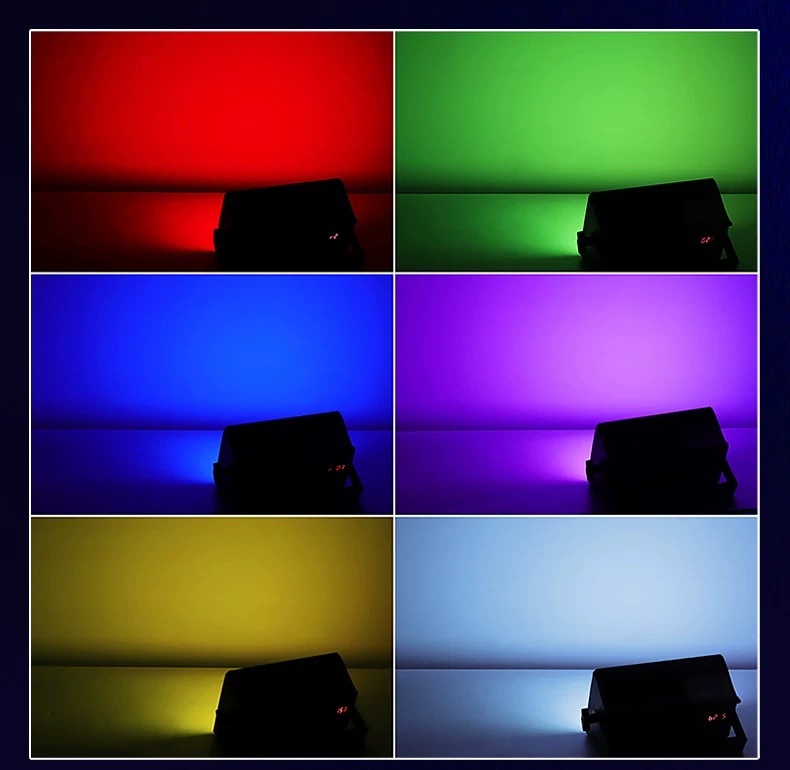

Function: Dyeing (Colour Wash) + Flashing + Running Point Control
Strobe Frequency: Adjustable from 1 to 30 Hz
Dimming: 32-bit high-resolution, 0~100% linear dimming

CONTROL

Protocol: DMX512 (with RDM function for remote management)
Control Modes: DMX, Self-Running (Auto), Master-Slave, Voice Control
Available Channels: CH08, CH13, CH15, CH18, CH24, CH30, CH34, CH50, CH120, CH127

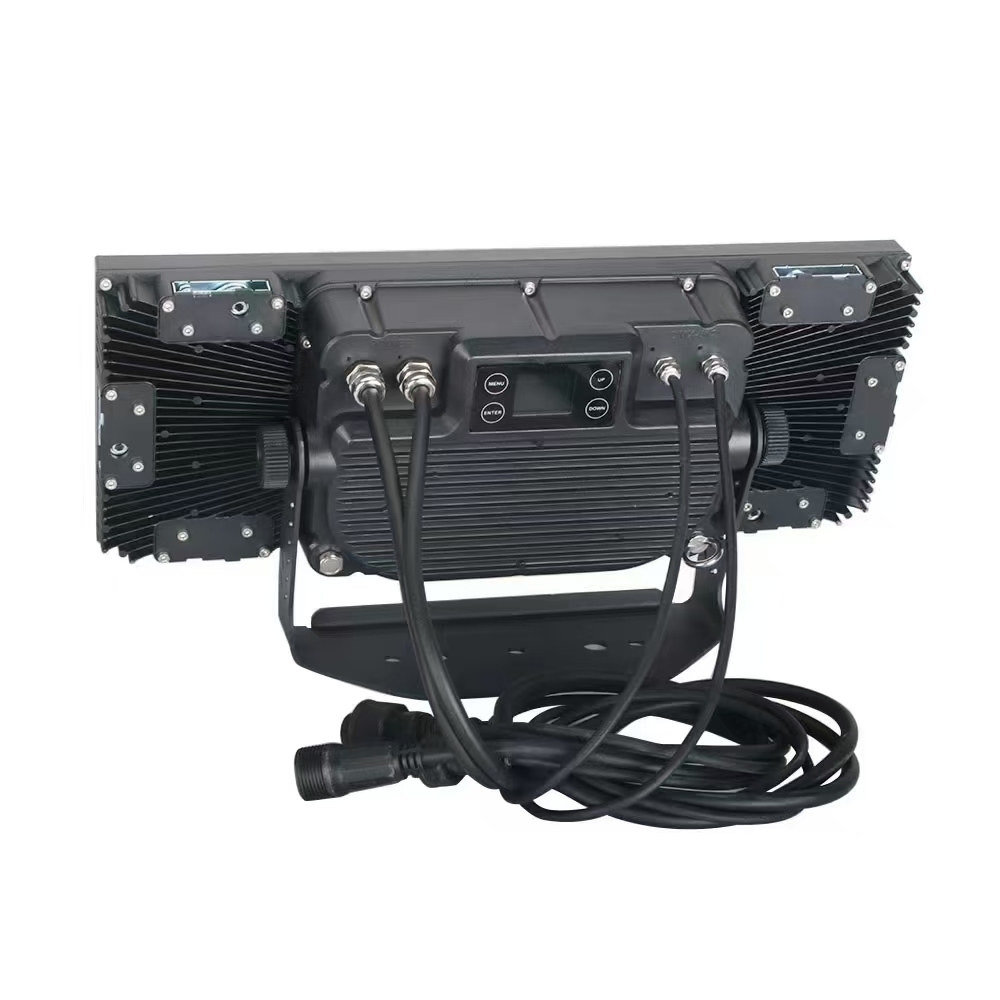

Connection: DMX512 Input & Output / Power Input & Output
Splicing: Two units can be spliced together (vertically or horizontally)

POWER CONSUMPTION

Rated Power: 400W
Input Voltage: AC 100-240V, 50/60Hz

PHYSICAL

Dimensions: 507 x 187 x 273 mm
Weight: 7.5 kg
IP Rating: IP65
Operating Temperature: -20°C to +45°C
