Running Mode: standard DMX512 signal,master-slave, Auto
DMX channel: 4in1 (4/8/12CH )
IP Rate: IP65
Effect distance: 50m
Product Description
Videos
Features
Projects
Product Description

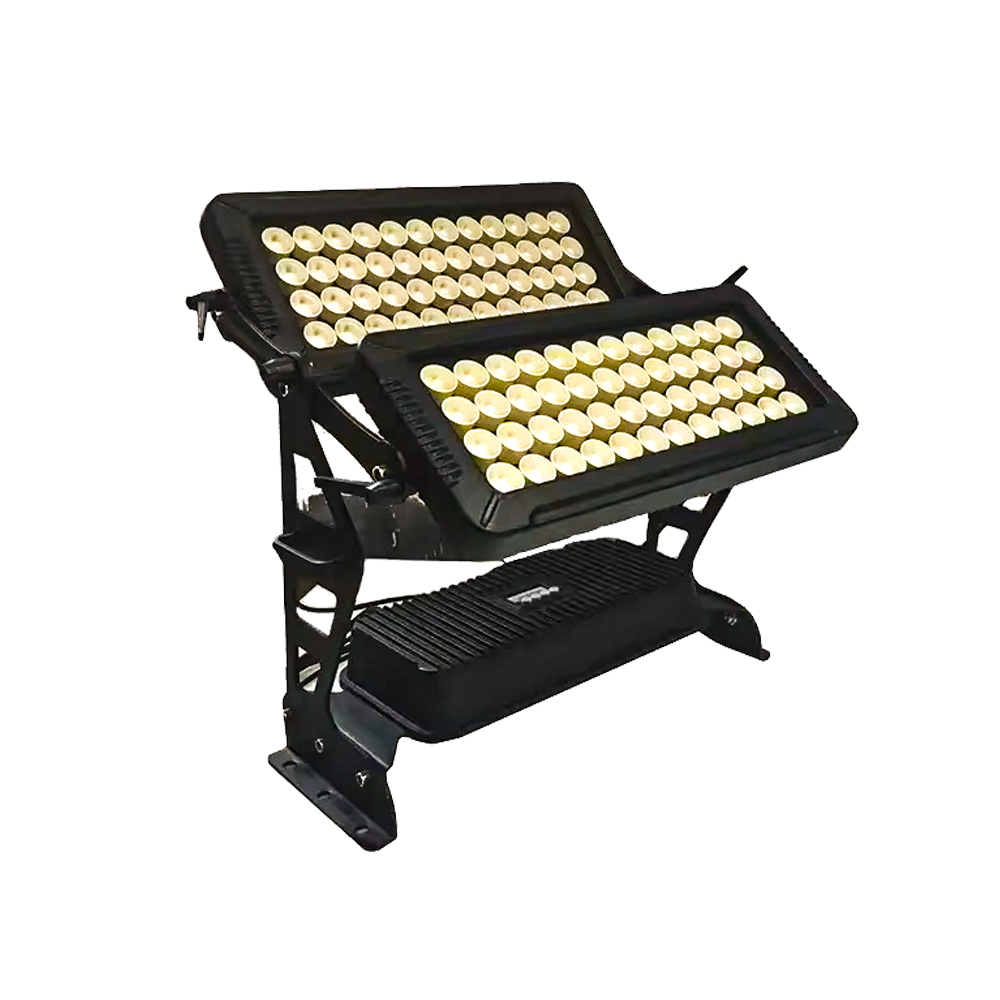

【High-Power LED Illumination】 Equipped with 96×10W RGBW/RGBA 4-in-1 LEDs, delivering vibrant, versatile color mixing (with options for white or amber tones) and powerful output.
【Dynamic Performance & Control】 Operates at 600W-800W power, with a 0-100% dimmer for smooth brightness transitions and adjustable stroboscopic effects (1-20 times/second) for dynamic visual impact. Offers a 50m effect distance, making it suitable for large venues and outdoor spaces.
【Flexible Beam & Operation Modes】 Features selectable beam angles (40°/25°/15°) to adapt to diverse lighting needs, from wide-area washes to focused beams. Supports multiple running modes: standard DMX512 signal, master-slave synchronization, and auto mode, with 4/8/12 DMX channels (4-in-1 configuration) for precise customization.
OPTICS
Light Source: 96*10W RGBW/RGBA 4in1
Beam Angle: 40°/25°/15°optional
Dimming: 0-100% 32-bit linear dimming
Stroboscopic: 1-20 times/second
CONTROL
Control System: DMX512
DMX Channels: 4in1 (4/8/12CH )
Running Mode:standard DMX512 signal,master-slave, Auto
DMX Signal Cable: IP65 3-pin DMX In & Out (Seetronic IP65 connector optional)
POWER CONSUMPTION
Input Voltage: AC90-240V, 50/60Hz
Power Consumption: 600W-800W
Expected Lifetime: 50,000 hours
PHYSICAL
Effect distance：50m
Housing: Cast Aluminum Body
Cooling: natural convection heat transfer and temperature controlled, overheating protection
IP Rated: IP65
Net weight：25kg
Carton size:68.5*62*61cm G/W:28kg (1pcs/CTN)
