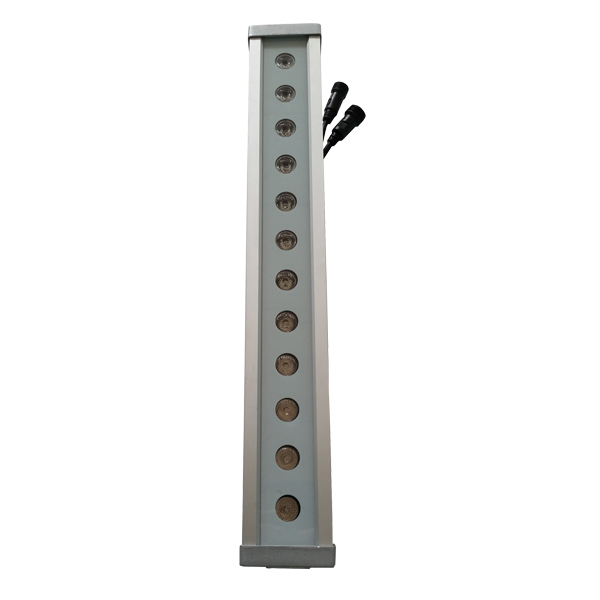

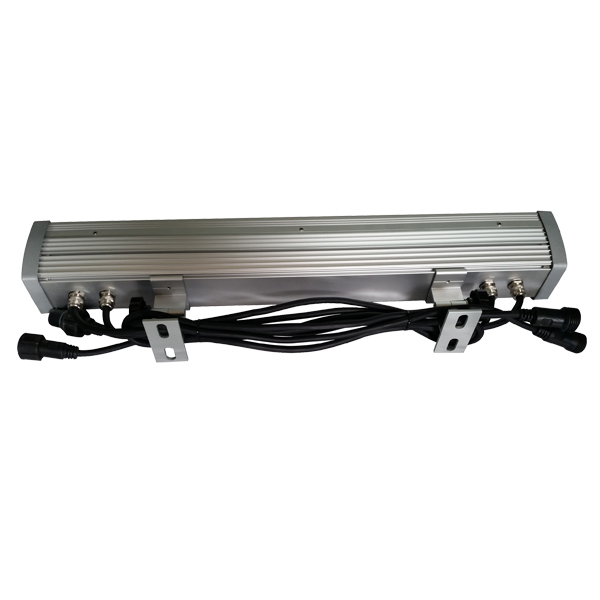

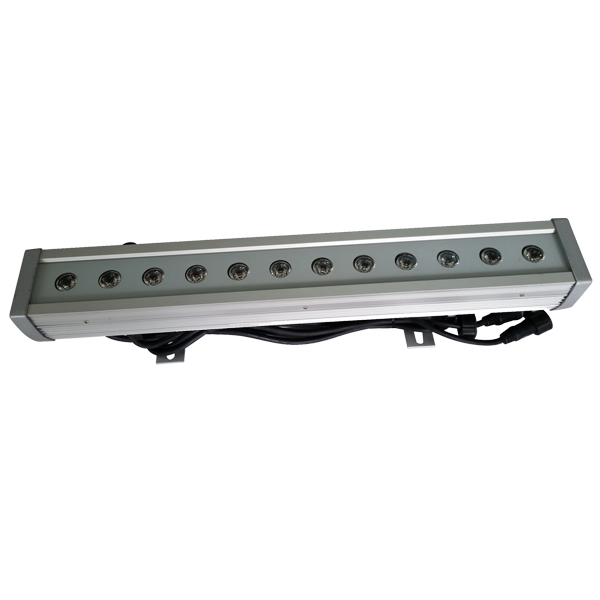

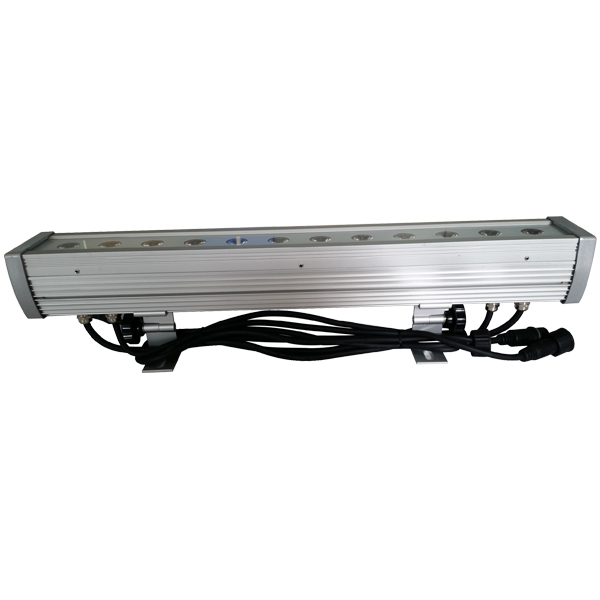

IP 12x3w Washer Bar

Name: IP 12x3w Washer Bar
Brand: Both Lighting
SKU: SKU:LE300
Availability: InStock
Rating: 5 (1 reviews)

SKU:LE300

IP65 Waterproof 12X3W RGB 3IN1 LED Wall Washer Outdoor Light for Architectural Building

Get A Quote Add to Quote List

Main features:

Led: 12x3W RGB 3-IN-1 LEDs
Beam angle:15-45°（optional）
DMX Channel:3/7CH
Control mode:Auto mode/ DMX/ Master and Slaver/Voice active
Function Effect: Dimmer, Strobe, Eotic, Gradual change
IP Rate: IP 65
DMX connectors: Standard DMX 3-pin

Product Description

Videos

Features

Projects

Product Description

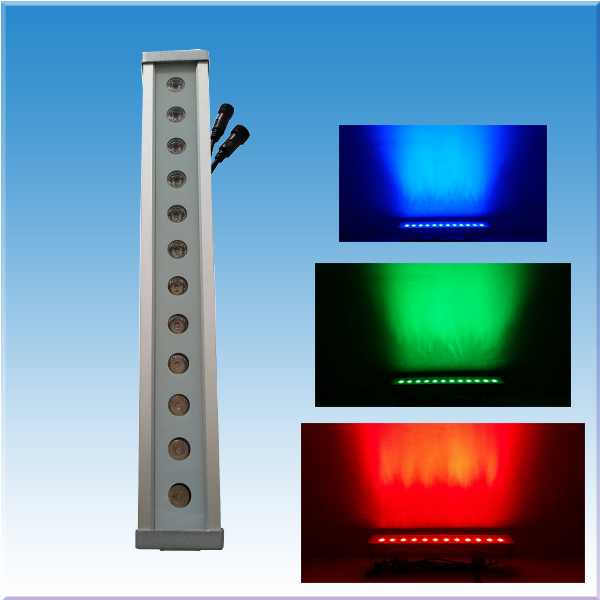

【Efficient RGB Illumination System】
Equipped with 12x3W RGB 3-in-1 LEDs, delivering vivid, full-color mixing for dynamic lighting effects.

【Versatile Control Modes】
Supports multiple operation modes: Auto mode (for independent use), DMX (with 3/7 channel options for professional customization), Master-Slave (for synchronized control of multiple units), and Voice Active (for sound-triggered effects), adapting to diverse application scenarios.

【Durable & Reliable Design】
IP65-rated for waterproof, dustproof protection, ensuring stable performance in outdoor or harsh indoor environments.

OPTICS

Light Source: 12x3W RGB 3-IN-1 LEDs
Beam angle:15-45°（optional）
Field angle: 34°
Illuminance: 1,952 lux @ 2 m
Strober：1-18/S
LED PWM dimming frequency: >400Hz
Dimming: 0-100% smooth dimming

CONTROL

Protocols: Auto mode/ DMX/ Master and Slaver/Voice active
Function Effect:dimmer, strobe, eotic, gradual change
Control channels: 3/7CH
DMX Signal Cable: 3XLR connector

POWER CONSUMPTION

Input voltage range:100-240V~50/60Hz
Power and current: 103 W, 0.4 A @ 230 V 50 Hz
Power consumption:40W

PHYSICAL

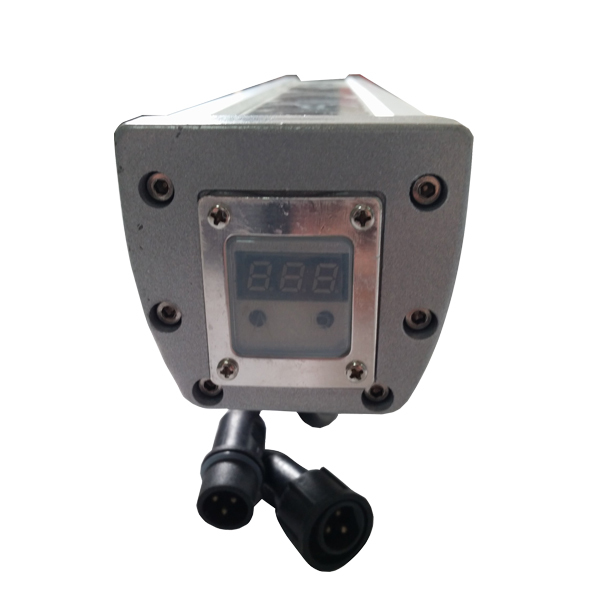

Power connector in/out
IP Rated: IP65
Cooling mode: Natural Convection
Data in/out: 3-pin XLR
Dimensions: 85x8.8x8.8cm
Weight:4kg
